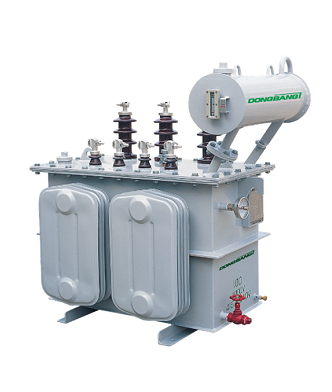

11kV, 22kV or 33kV Top Bushing Type Transformer 11kV, 22kV or 33kV Side Box Type Transformer 3D -TRI Type Transformer
Ratings
Phase : Three
Frequency : 50 / 60 Hz
High Voltage : 33, 22 & 11kV
Low Voltage : L.V

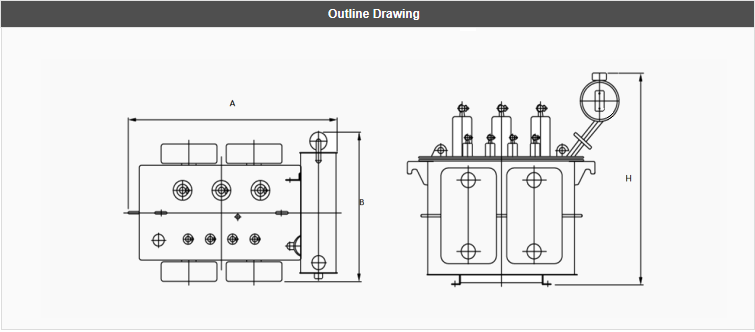

Three Phase Dimensions (11kV)
Capacity (kVA) Dimension(mm) Oil(L) Total W.T (kg)
A B H
50 1040 700 1050 127 440
100 1130 780 1100 163 600
200 1140 800 1300 220 870
300 1180 900 1350 265 1100
500 1300 1350 1550 470 1900
750 1600 1600 1800 600 2500
1000 1650 1650 1850 700 3000
1250 1700 1700 1900 850 3800
1500 1800 1900 1950 920 4200
2000 2000 1950 2000 1000 4800
