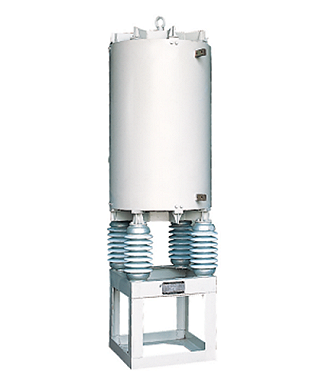

> Product > Reactor
| Ratings |
|---|
| Reactance : 0.6 ohm |
| Frequency : 60Hz |
| Consecutive current : 300A |
| Short-term current : 10,000A |
| Feature |
|---|
| Power Transformer Secondary neutral point of breakdown current inflow size limit in ground reactor |

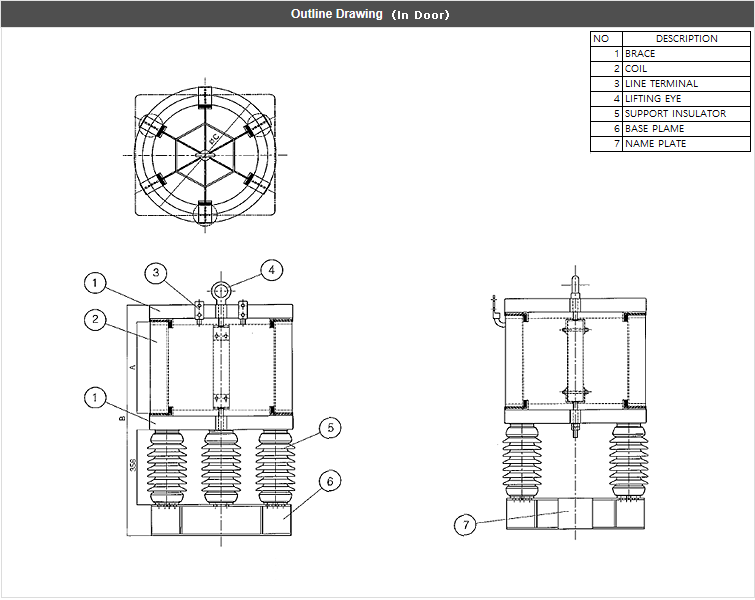

| Dimensions (In Door) | ||||
|---|---|---|---|---|
| Specification | A | B | C | W.T (kg) |
| 12.7kV 184A 8.6mH | 500 | 1150 | 490 | 450 |
| 25.4kV 92A 34.4mH | 480 | 1130 | 500 | 460 |
| 25.4kV 184A 8.6mH | 400 | 1090 | 590 | 600 |
| 92A 34.4mH | ||||
| 25.4kV 275A 11.5mH | 750 | 1400 | 520 | 700 |
| 11.95kV 196A 0.126mH | 240 | 890 | 270 | 150 |
| 23.9kV 294A 0.168mH | 260 | 910 | 310 | 180 |
| 23.9kV 196A 0.252mH | 240 | 890 | 300 | 160 |

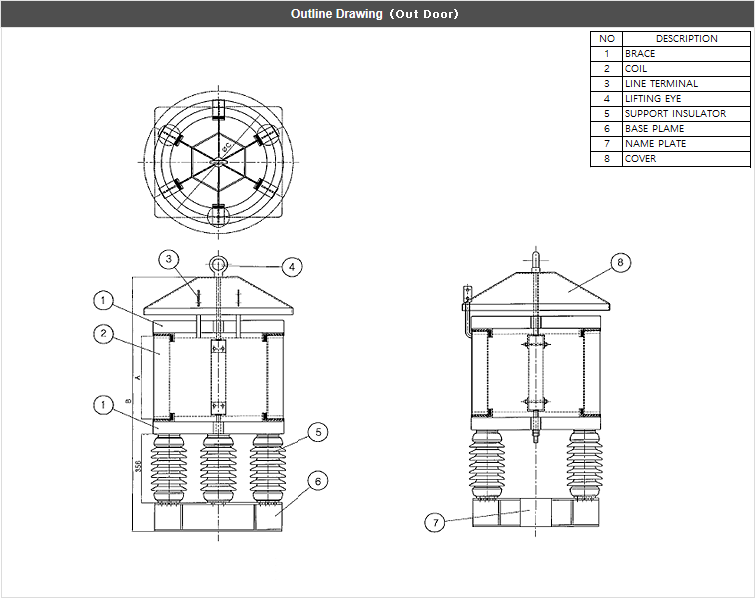

| Dimensions (Out Door) | ||||
|---|---|---|---|---|
| Specification | A | B | C | W.T (kg) |
| 12.7kV 184A 8.6mH | 500 | 1500 | 490 | 450 |
| 25.4kV 92A 34.4mH | 480 | 1480 | 500 | 460 |
| 25.4kV 184A 8.6mH | 400 | 1440 | 590 | 600 |
| 92A 34.4mH | ||||
| 25.4kV 275A 11.5mH | 750 | 1750 | 520 | 700 |
| 11.95kV 196A 0.126mH | 240 | 1240 | 270 | 150 |
| 23.9kV 294A 0.168mH | 260 | 1260 | 310 | 180 |
| 23.9kV 196A 0.252mH | 240 | 1240 | 300 | 160 |
